759-ECM (Coming Soon)

Refrigeration Evaporator Fan Controller

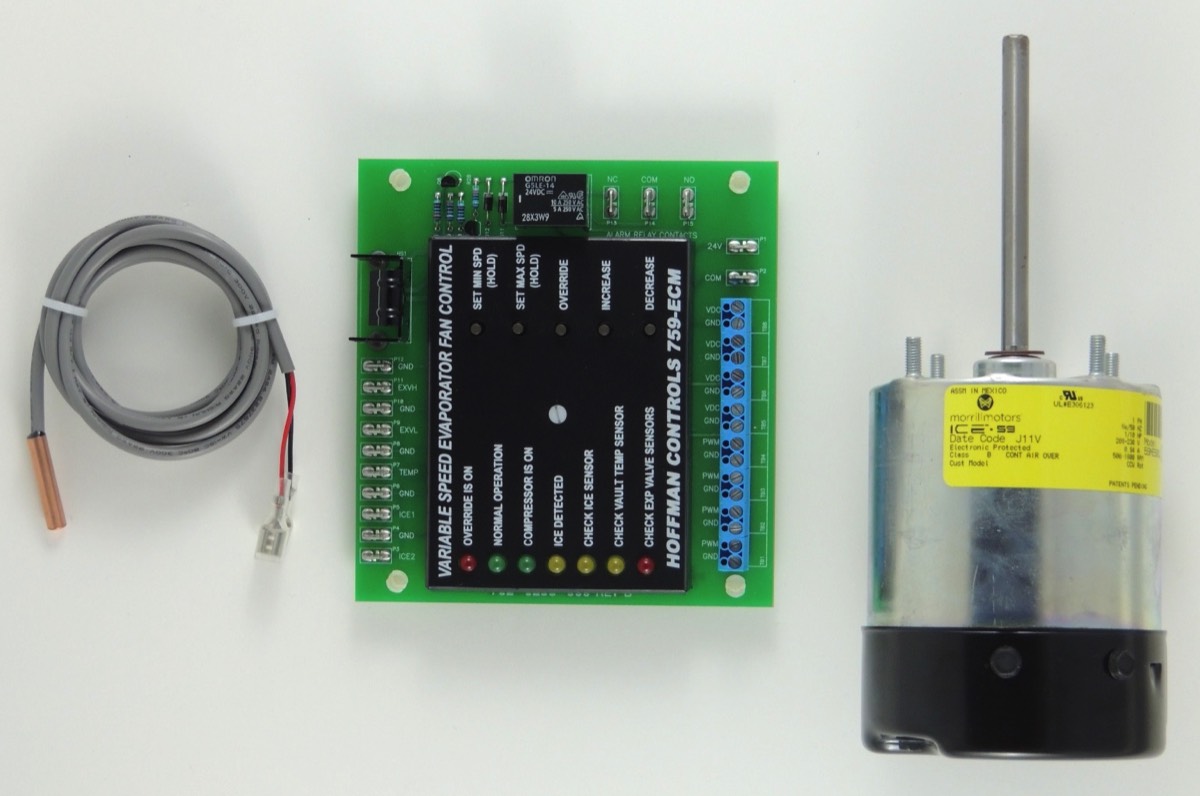

The 759-ECM controller is designed for walk-in and reach-in coolers and freezers that have continuously variable speed ECM evaporator fan motors, such as the ICE-59 and the ICE-142. This controller provides maximum efficiency, reduced compressor tun time, reduced product shrinkage, and increased product shelf life by continuously varying the evaporator fan speed depending on the vault temperature.

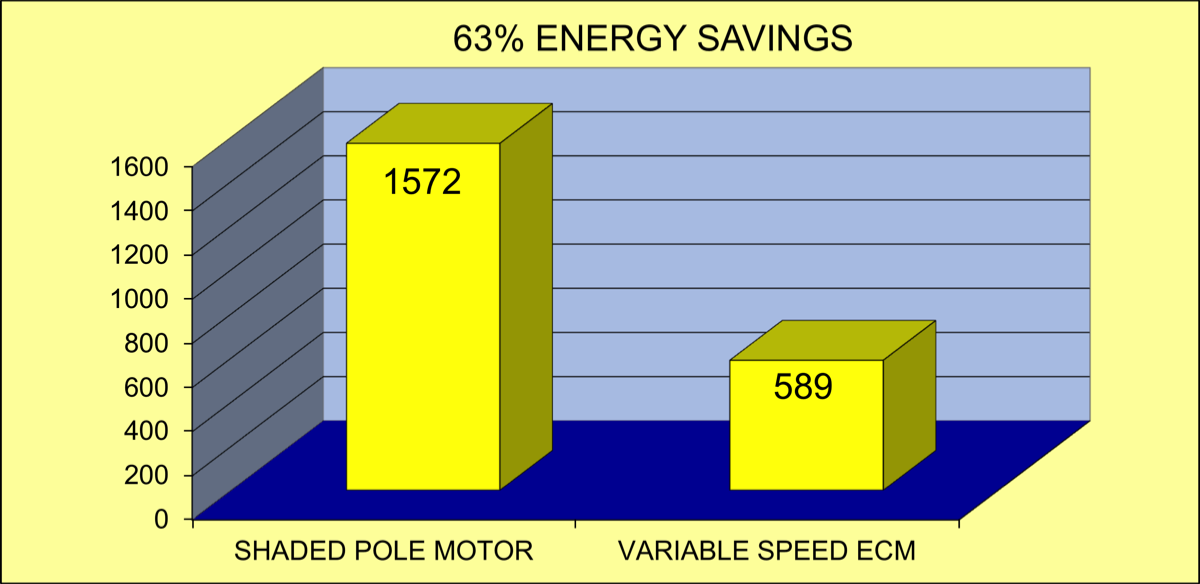

It is well-known that a two speed evaporator fan and control can provide energy savings by reducing the air flow during the compressor-off part of the cycle. This controller takes the technology to a new level by continuously varying the fan speed as the vault temperature rises during the compressor-off period.

The only sensors used by this control are temperature sensors, used to detect when the expansion valve is operating, the vault temperature, and the presence of ice (for medium temperature applications).
Applications
  • Continuously variable speed ECM motors
  • Walk-in and reach-in coolers and freezers
Features
Stacks Image 2151
  • Optimally varies the speed of the condenser fan motor
  • Automatically adjusts to thermostat settings and the refrigeration cycle
  • Simple installation does not require changes to thermostat or compressor wiring
  • No programming or set-up necessary for basic operation
  • Adjustable maximum and minimum fan speeds

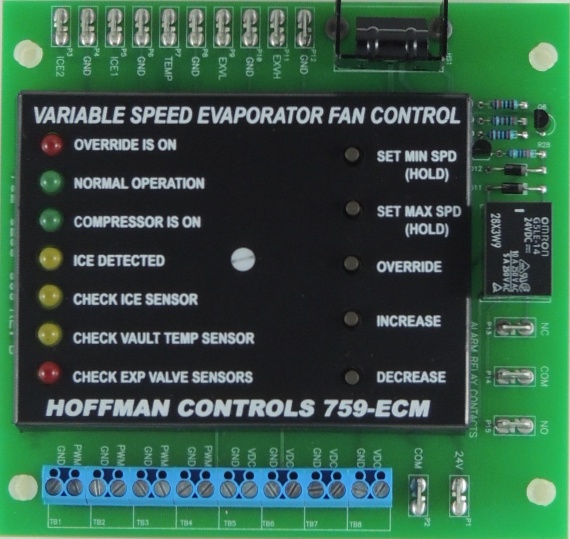

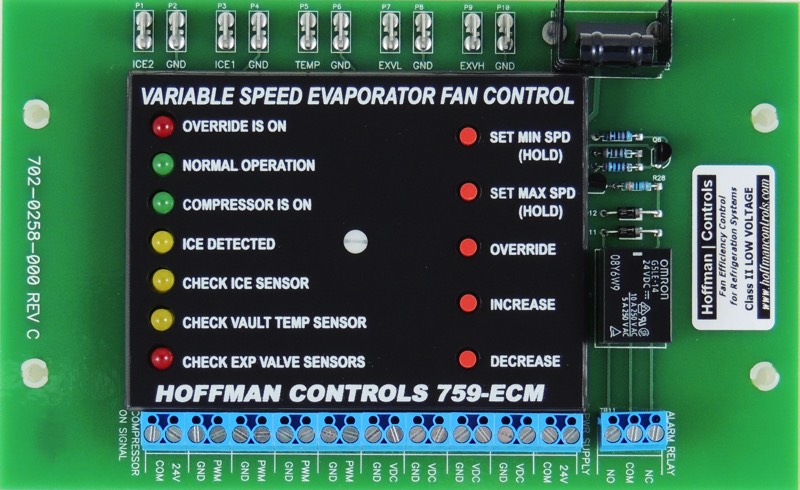

  • LED indicators for error conditions and normal operation indication
  • PWM and 0-10V outputs for control of ECM Motors
  • Up to 12 motors may be controlled simultaneously
  • Override button allows bypass of control to keep fans at maximum speed
  • Frost detection for medium temperature applications sets fan to maximum speed
  • External alarm dry contract relay for error conditions
