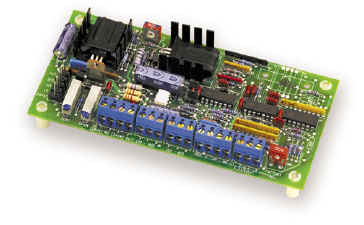

901-D
Multiple Input Logic



The 901-D Multiple Input Logic is designed to provide a proportional time base for operating one or more power switch(es) and/or the sequencer of the control system.  The time proportioned output selects a percentage of the time base for connecting power to the load.

Features

    •  Multiple (selectable) inputs on 901-D Series.

    •  Field adjustable zero and span for all inputs.

    •  Controls up to 12 power switches from one logic.

    •  Low voltage control, requires 24V AC power.

900/901/906 Series Product Data

 900 Series Checkout Procedure

900/901/906 Series Wiring Diagrams

 900 Series Engineering Bulletin

901-D and 901-DP Series Recalibration Instructions
